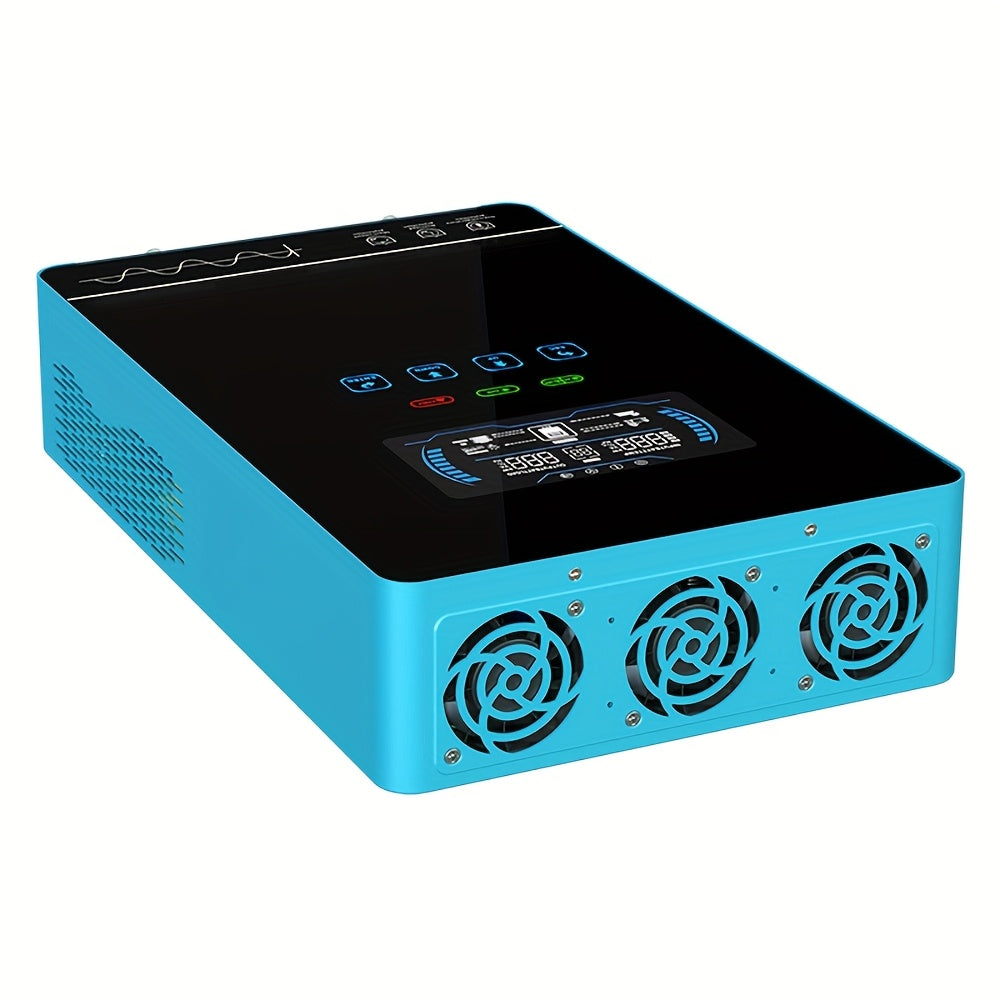

4000W Solar Hybrid Inverter DC24V 120VAC Pure Sine Wave Battery-Free Starting Built MPPT 140A Solar Charger, 6.25 Inch LCD Screen And Touch Buttons

[Pure sine Wave Inverter]4000W Pure sine Wave Inverter is a new all-in-one hybrid solar inverter charger, Tempered glass top cover design + touch function, one key to restore the default settings. The default mode is Off Grid. You can manually enable On Grid.

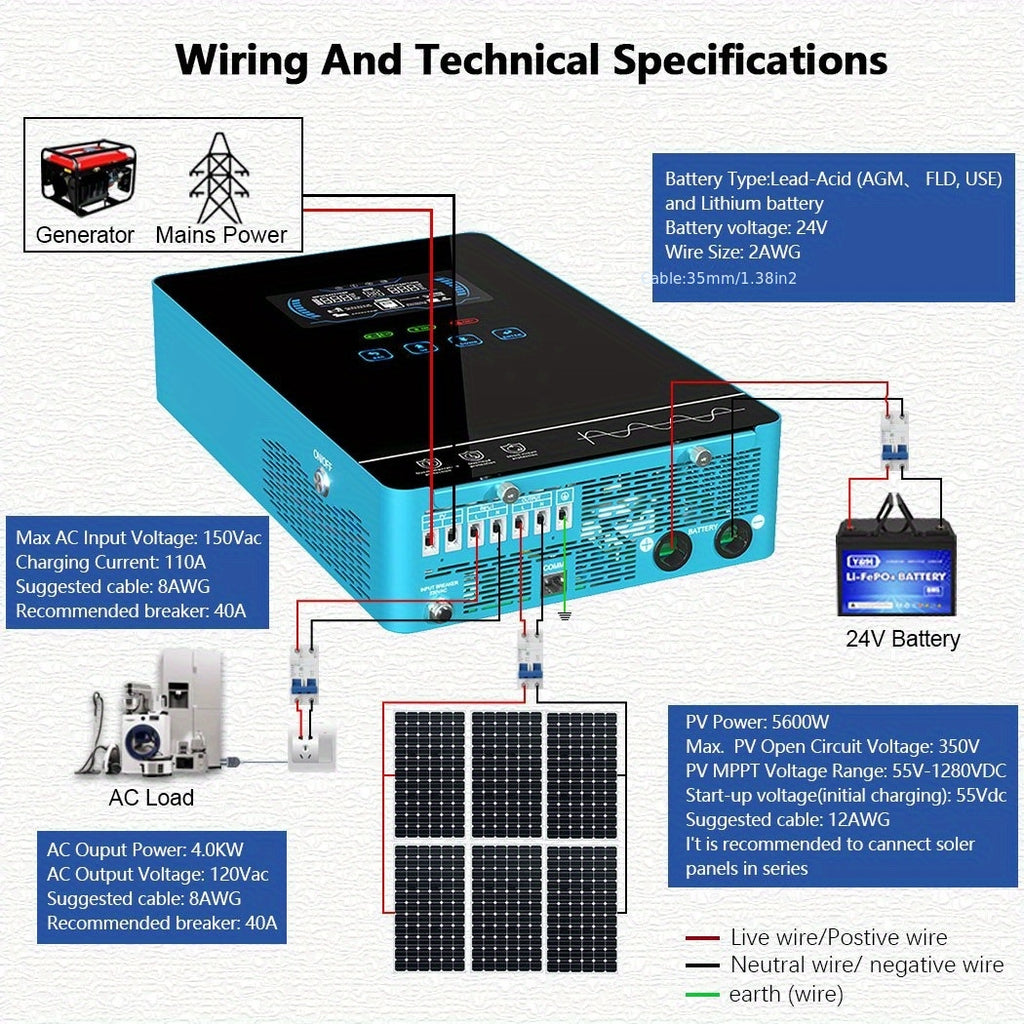

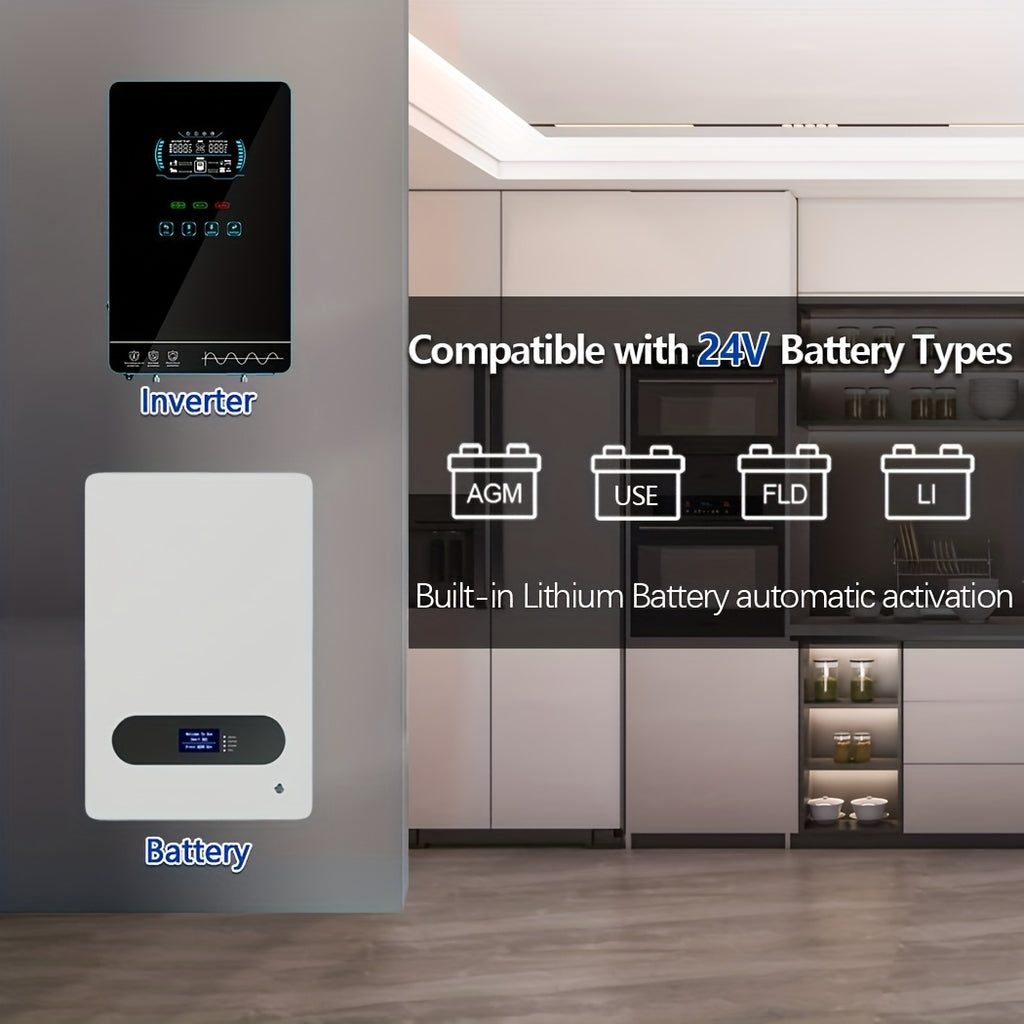

[TECHNICAL SPECIFICATIONS]4KW Hybrid Solar Inverter Max.PV Input Power: 5600W, Voltage range: 55-350Vdc, Max. PV Input VOC: 350V DC, Starting voltage >90V;The best working voltage is 55-280V;Max. charge current: 140A. Nominal Input Frequency: 50/60Hz;Output Power: 4000W, surge Capacity: 8000w. fit for 24V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery

[MULTIPLE CHARGING MODES]Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains Frist, Solar Frist and Mains & Solar hybrid charging;and 3 output modes are available, i.e. Solar Frist, Mains Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.

[BMS]Built-in BMS function.Lithium Battery Activation， has a reactivation feature to awaken a sleeping lithium battery. Inverter work easy to heat, traditional design of 2 cooling fans, Y&H design of 3 fans, better cooling function, improve work efficiency, prolong the life of the inverter.

[Reduced Initial Investment Cost]Battery-less startup design significantly reduces system purchase cost. Battery installation, maintenance and replacement costs are eliminated. Direct utilization of photovoltaic power, suitable for daytime high energy consumption scenarios, especially in areas where solar energy resources are abundant and demand for electricity is concentrated in the daytime (it is recommended to match the grid input, which automatically switches to utility power to supplement w

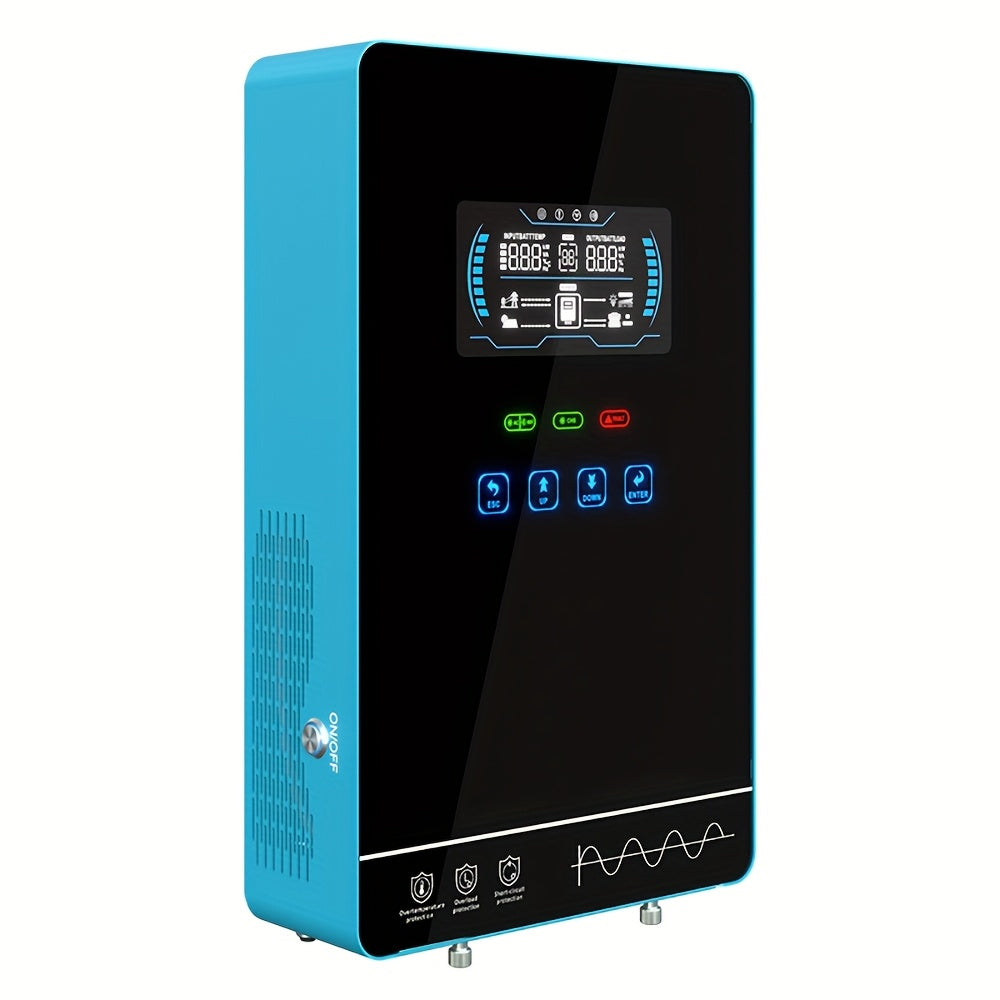

Features：1.No battery function available2.SBU mode:utility powerbattery and PV power complement each other3.Pure sine wave solar inverter4.Unique glass top cover design5.with 6.25inch LCD displayand touchable buttons6.Built-in 140A MPPT(Max PV 5600W) solar charger7.High PVinput range from 55V-350Vdc8.Smart battery charger design for optimized battery performance

9.Configurable AC/Battery input priority via LCD setting10.Auto restart while PV is recovering11.Over-load, over temperature and output shortcircuit protectionCold restart function12.Built-in lithium battery automatic activation13.Restore default Settings with one click14. 3 Heat Dissipation Fan
